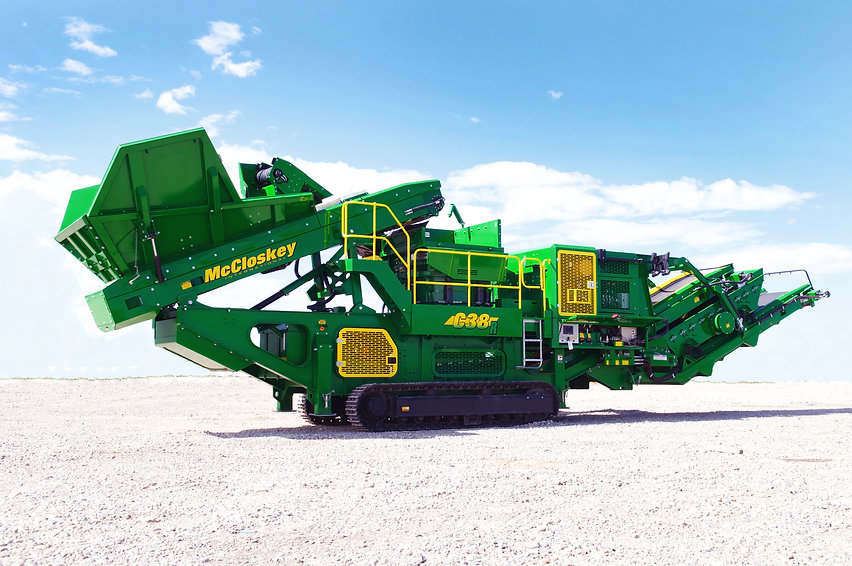

C38R Recirculating Cone Crusher



When it comes to secondary cone crushers, McCloskey’s reputation stands strong in the C38 Cone Crusher. This portable unit is the perfect answer for operators needing production rates as high as 300TPH. With intricate design that enables it to function in crushing spreads with other McCloskey equipment, such as the S130 Screening Plant and J40 Jaw Crusher, you can get cubical chips that range from 3/8” to up to 5”. The perfect starter cone that has all of the desirable features, you can get the results you need. It features an anti-spin system, material monitoring, load monitoring, a fully hydraulic relief system, and a fully hydraulic push-button CSS adjust system so you get all of the latest advances in one machine. It operates with a 350-hp diesel engine and weighs in at 80,468 pounds. It is easy to move with a transport length of 48 feet, 10 inches and a transport width of 8 feet, 2.4 inches.








Specifications



Cone Size: 40"

Screenbox Size: 5'x10'



Engine: 350 HP (261 kW) Tier 4 Final

Transport Height: 11' 2" (3.4m)
Transport Width: 9' 6" (2.9m)
Transport Length: 52' 7" (16.02m)
Stockpile Height: 9' 9" (2965mm)
Weight: 100,300 lbs (45,495 kg) estimated
