All Products: Vermeer: Grinders: VERMEER TG525

We CRUSH the Competition!!!

See video
Basic Information
Machine NameVERMEER TG525
Machine ID863
Model NumberTG525
Hours3500
Asking PriceName Your Price!
Machine Information
ManufacturerVermeer
CategoryGrinders
Overall ConditionGood
Year2006
Engine and Components
Engine Burns OilNo
Engine Oil LeaksNo
Conveyor Belts ConditionExcellent
Engine Parts ConditionGood
Engine ConditionGood
Drivetrain and Mechanical
RollersGood
TracksNo
Tracks ConditionNot Applicable
WheelsYes
Wheels ConditionExcellent
Hydraulics
Pumps and Motor LeaksNo
Hose LeaksNo
Hydraulic System ConditionGood
Body
Physical DamageNo
Paint ConditionFair
Overall AppearanceFair

Additional Information



This machine is ready to go to work. Make an offer

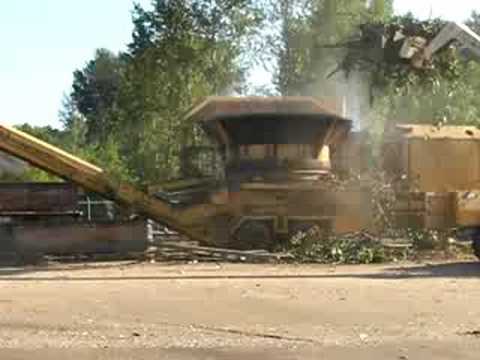

(Video is for demonstration purposes and may not be actual machine for sale)

Manufacturer: Vermeer

Model: TG525



  US/Imperial Metric

Engine: CAT 3406E

Height: 13.4 '

Length: 40.3 '

Weight: 45900 lbs

Width: 12 '



Additional Info:

GENERAL

Weight-Tandem Axle Non-Loader: 45900 lbs

Length: 40.3'

Height: 13.4'

Width - Operational maximum: 12'

Weight- Triple Axle w/ Loader: 60300 lbs

Length w/ Loader: 45.6'

Height w/ Loader: 13.5"

Width - Transport: 8.5'



ENGINE

Model: CAT 3406E

Horsepower: 525 hp

Fuel Consumption Rate: 25.3 gph

Number of Cylinders: 6

Operating Range: 8 hrs





DRIVE LINE

PTO: 14" PT-Tech Hydraulically Actuated Wet Clutch



CONTROLS

Radio Remote: E-Stop, throttle, tub auto, tub manual, tub cover

On-Machine Control Station: Side-mounted with falling object canopy



BELLY CONVEYOR

Belt Width: 30"



TUB

Inside Width at Bottom: 8'

Loading Height: 10'

Outside Diameter - Operational: 11.5'

Tub Cover Available: Hydraulically positioned, locked for operation



REAR DISCHARGE

Width: 30"

Discharge Height: 12'

Rear Discharge Length: 20'



TRAILER

Axle Rating: 20,000 lbs (9072 kg) per axle



LOADER

Reach: 27'

Operating Height: 18'



PRIMARY SPECS



General

Approximate weight:

Triple axle loader: 60,300 lb (27,352 kg)

Tandem axle nonloader: 45,900 lb

(20,820 kg)

Weight at axles (estimated):

Triple axle loader: 42,000 lb (19,051 kg)

Tandem axle nonloader: 33,000 lb

(14,969 kg)



Engine

Model: CAT 3406E ATAAC

Aspiration: Turbocharged and air-to-air

charge-cooled

No. of cylinders: 6

Gross hp @ full load: 525 hp (391 kw)

@ 2100 RPM

Electrical system: 24-volt starting

Fuel-tank capacity: 195 gal (738 L)

Fuel consumption rate @ full load: 25.3 gph (95.8 L/h)

Operating range: 8 hours (approximate)



Drive Line

PTO direct with torque limiter through

drive shaft with 1:1 ratio to engine RPM

PTO: Twin Disc, Inc. triple disc 18" (46 cm)

clutch

Torque limiter: PT-Tech friction type

Drive line: Spicer 1810



Controls

Radio remote control optional w/loader

Functions:

Tub rotation, forward and reverse

Tub auto rotation, on and off

Engine throttle

Engine kill

Tub cover swing and latch

Side-mounted manual control station

with Falling Object Canopy



Trailer

Axle rating: 20,000 lb (9072 kg)

per axle

Axle: Tandem or triple axle with dual wheels, 5" (13 cm) diameter axle

Tires: Tandem w/loader — 235/17.5

All others — 215/17.5

Brakes: Air-actuated, spring-applied



FEATURE SPECIFICATIONS



Loader

Reach: 27' (8.2 m)

Loader rating: 100,000 ft-lb (135,380 Nm)

Lift at maximum reach:

3940 lb (1787 kg) total payload

(Deduct grapple weight for working

capacity.)

Cab/boom swing: 370°

Operating height: 18' (5.5 m)

Controls: Hydraulic, pilot-operated,

seat-mounted

Pump: Pressure and flow-compensated

Tank: Full-flow return filtration, 10 micron

Stabilizers: Front and rear hydraulic



Grapple

Available options: Bypass and

multi-tine types

Rotation: Continuous



Cab

Heating and air conditioning

Folds for transport height of 13' 6" (4.1 m)

.25" (.6 cm) LEXAN windows

Front intrusion guard

AM/FM cassette (optional)



Tub

Outside width at top (flares unfolded; flares folded):

8' 6" transport width units — 12' (3.7 m); 8' 6" (2.6 m);

2.5 m transport width units (optional) — 11' 6" (3.5 m); 8' 1" (2.5 m)

Inside width at bottom:

8' 6" transport width units —

8' (2.4 m);

2.5 m transport width units —

7' 6" (2.3 m)

Depth: 5' (1.5 m)

Loading height: 10' (3.0 m)

Drive: Hydraulic w/gearbox and chain



Drum

Outside diameter: 22.5" (57.2 cm)

Length: 46" (117 cm)

Skin thickness: 1.75" (4.4 cm)

Hammer pockets: 8

Hammer swing-tip diameter: 29" (74 cm)

Drum end caps: Replaceable

Stub-shaft diameter: 4.33" (11.0 cm) at bearing; 4.25" (10.8 cm) at coupler

Bearing style: Spherical roller

Weight: 2900 lb (1315 kg) (w/ wide cutter blocks; less bearings and coupler)



Hammers

Length: 27.3" (69.3 cm)

Thickness: 2" (5 cm)

Width: 4" (10 cm)

Weight: 67 lb (30 kg)

Material: 4140 steel



Cutter Blocks

Reversible: Yes

Saddle block: Yes

Carbide impregnated: Yes

Options:

Wide version

Width: 2.75" (7.0 cm)

Number of retaining bolts per block: 1 Bolt diameter:

.875" (2.2 cm)

Narrow version

Width: 1.75" (4.4 cm)

Number of retaining bolts per

block: 2 Bolt diameter:

.625" (1.6 cm)



Safety Retaining Pin

Diameter: 2" (5 cm)

Slide hammer tool set: Yes

(for easy pin removal)



Tongue

Weld-in king pin

Bolt-in king pin (optional)

Full-coverage fifth-wheel plate



Tub Cover

Hydraulically positioned

Hydraulically locked for operation and

manual deadbolt pinned for transport



Undermill Conveyor

Belt width: 30" (76 cm)

Drive: Hydraulic w/direct coupled motor



Rear-Discharge Conveyor

Belt width: 30" (76 cm)

Belt discharge height: 10' (3.0 m) minimum

— 12' (3.7 m) @ 30°

Drive: Hydraulic w/direct coupled motor

Head pulley: 30.5" (77.5 cm) wide x 8"

(20 cm) diameter crowned; magnetic

option with chute to separate nails

Length: 20' (6.1 m)
