All Products: Trackstack: Conveyors: Track Stack VL Series

We CRUSH the Competition

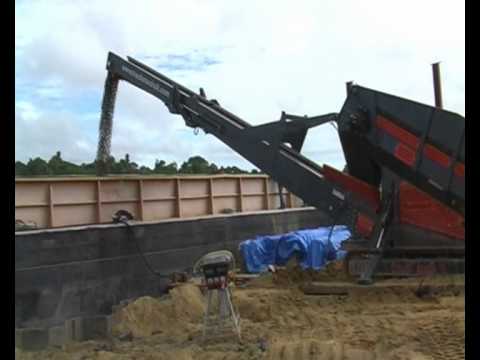

See video
Basic Information
Machine NameTrack Stack VL Series
Machine ID767
Model NumberVL SERIES
Hours0
Asking PriceName Your Price!
Machine Information
ManufacturerTrackstack
CategoryConveyors
Overall ConditionNew
Year2013
Engine and Components
Engine Burns Oil
Engine Oil Leaks
Conveyor Belts Condition
Engine Parts Condition
Engine Condition
Drivetrain and Mechanical
Rollers
Tracks
Tracks Condition
Wheels
Wheels Condition
Hydraulics
Pumps and Motor Leaks
Hose Leaks
Hydraulic System Condition
Body
Physical Damage
Paint Condition
Overall Appearance

Additional Information

EASE OF USE
The EC approved Trackstack VL Series features a large 4.6 metre wide track mounted receiving hopper with hydraulic sides as standard. A 2.4 metre wide conveyor belt, feeds the 900mm wide radial boom discharge conveyor with a 130 degree radial slew mechanism. Discharge conveyor features a hydraulic folding head section allowing for quick, efficient compact road transportation as well as allowing for a rapid set up time and ease of movement at its final job destination.
CONTROLS
Easy to use fully operational dog-lead remote control allowing for versatility and outstanding manoeuvrability
POWER PACK
The Trackstack VL series is powered by a Caterpillar 75 Kw (100 H.P) power pack, directly linked to the hydraulic pump in order to drive both the numerous motors and the hydraulic fold.
CHASSIS
With its powerful chassis and heavy duty tracks the Trackstack ensures optimum stability and strength regardless of its applications.
VERSATILITY
The Trackstack VL series is a unique low level, above ground receiving hopper featuring a radial boom conveyor designed onto a single track mounted chasis for ease of movement and minimum of on-site civil works or permanent structures.
Models: Two models available. 600T/Hr and 1000 T/Hr
MACHINE SPECIFICATION
Feeder belt width: 2.4 m (79”)
Discharge conveyor belt Length: (two options available) 9.5 m (31 Ft) and 13.5 m (44 Ft) (optional)
Stabilizing legs on 13.5 m conveyor only (optional)
Feed hopper opening: 4.6 m (15Ft) wide
Discharge conveyor height: 9.5m Long 4946 mm (16.2 Ft)
Discharge conveyor height: 13.5 m Long 6635mm (21.8 Ft) (optional)
Transportation length: 9.5 m conveyor 14830mm (48.6 Ft)
13.5 m conveyor 16752mm (54.9Ft) (optional)
Transportation height: 3325 mm (10.9 Ft)
Transportation width: 2950 mm (9.6 Ft)
OPTIONAL:
- 13.5 m long discharge conveyor with stabilizing legs
- Dual power option: machine fitted with 75Kw electric motor and external panel
- Ultra sonic Sensor probe control for automatic left or right movement on discharge conveyor.
- Hydraulic folding conveyor
- Wear resistant hopper liner plates
- Dust Covers (canvas or metal fabrication available)
- Dust/water Suppression
- Discharge dust chute
- Full radio remote control for travel and operation
APPLICATIONS:
-       Bulk loader/unloader
- Ships
- Barge loader
- Rail car Loader/Unloader
- Stockpiling
