All Products: McCloskey: Screens: McCloskey S190 TD

COREX CRUSHERS: 30% less diesel + Production 500-1000 tph (click here)

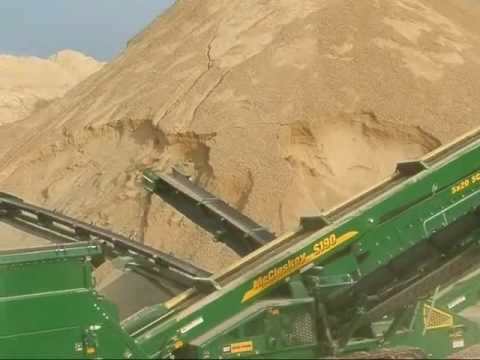

See video

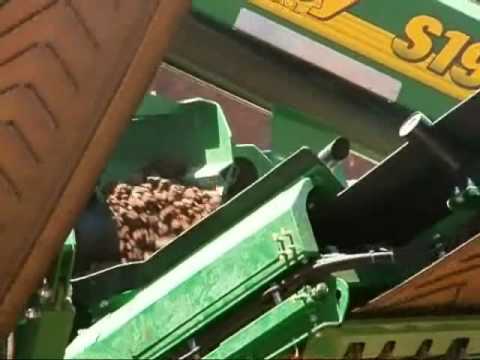

See video
Basic Information
Machine NameMcCloskey S190 TD
Machine ID300
Model NumberS190 Triple Deck
Hours0
Asking PriceName Your Price!
Machine Information
ManufacturerMcCloskey
CategoryScreens
Overall ConditionNew
Year2013
Engine and Components
Engine Burns Oil
Engine Oil Leaks
Conveyor Belts Condition
Engine Parts Condition
Engine Condition
Drivetrain and Mechanical
Rollers
Tracks
Tracks Condition
Wheels
Wheels Condition
Hydraulics
Pumps and Motor Leaks
Hose Leaks
Hydraulic System Condition
Body
Physical Damage
Paint Condition
Overall Appearance

Additional Information

McCloskey S190 Tripledeck

The McCloskey Tripledecks (TD) boast an array of features and benefits which elevate the models above all the competitors in its class. The S190 TD has the highest combined true screening area across three decks, whilst the S130 TD hascomparable production capacity to its competitor's larger models at a far more cost effective price.

This class leading screening area, along with it high energy screening action (combination of optimised screenbox weight, shaft speed, and screen amplitude dynamics) ensure that the McCloskey Tripledeck models are the superior choice in aggregate material screening.

The McCloskey Tripledeck models are uniquely produced with a cross conveyor, and a fully hydrualic fold fourth conveyor as standard. This reduces set up time, the need for lifting equipment, and prevents damage or bending when moving the machine, or when setting up with manual lifting gear.

With quality components throughout, the McCloskey Tripledecks offer a reliable solution to the demands of customers application needs.

Specifications
  S190 Tripledeck Dimensions & Weight S130 Tripleck
Powerunit: 125 HP 100 HP
Screenbox- top deck: 6.1m x 1.524m (20' x 5') 4.270m x 1.524m (14' x 5')
Screenbox - middle deck: 6.1m x 1.524m (20' x 5') 4.270m x 1.52m (14' x 5')
Sceenbox - bottom deck: 5.490m x 1.524m (18' x 5') 3.660m x 1.524m (12' x 5')
Length - transport all models: 17.16m (56' - 4") 15.09m (49' - 6")
Width -Transprt all models: 3.0m (9' - 10") 3.0m (9' - 10")
Height - transport track: 3.45m (11' - 4") 3.45m (11' - 4")
Height - transport wheel: 3.73m (12' - 3") 3.73m (12' - 3")
Weight - track: 36,500kg (80,468 lbs) - est 29,000kg (63,933 lbs) - est
Weight - wheel: 33,000kg (72,752 lbs) 25,000kg (55,115 lbs) - est
