All Products: Lippmann: Rip-Rap: LIPPMANN RIP-RAP PLANT

COREX CRUSHERS: 30% less diesel + Production 500-1000 tph (click here)

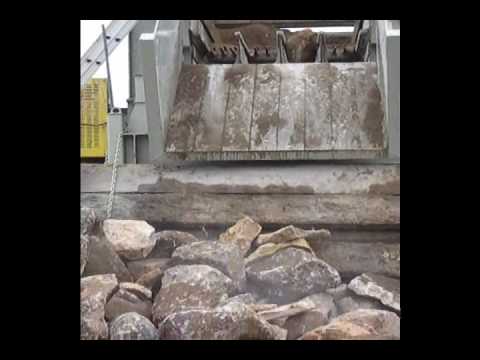

See video
Basic Information
Machine NameLIPPMANN RIP-RAP PLANT
Machine ID713
Model NumberRIP-RAP PLANT
Hours0
Asking PriceName Your Price!
Machine Information
ManufacturerLippmann
CategoryRip-Rap
Overall ConditionNew
Year2013
Engine and Components
Engine Burns Oil
Engine Oil Leaks
Conveyor Belts Condition
Engine Parts Condition
Engine Condition
Drivetrain and Mechanical
Rollers
Tracks
Tracks Condition
Wheels
Wheels Condition
Hydraulics
Pumps and Motor Leaks
Hose Leaks
Hydraulic System Condition
Body
Physical Damage
Paint Condition
Overall Appearance

Additional Information

The Lippmann Portable Rip-Rap Plant is a completely self-contained, high production screening and scalping unit which offers a full 62” wide by 24’ long vibrating grizzly feeder.

While some other rip-rap plants are too narrow to stratify material in order to screen it efficiently and operate at maximum capacity, Lippmann’s larger screening area offers up to 30% more capacity and prevents rock from stacking up. Smaller rock separates easily, so your plant can run at higher speeds to optimally produce the 4”-12” rip-rap you need.

Besides delivering increased efficiency and capacity, the Lippmann Portable Rip-Rap Plant offers a superior, unique box beam construction. This allows your front-end loaders easier access to chutes, at better angles, with substantially increased clearance space over conventional chassis designs.

62"x24' Portable Rip-Rap Plant

• Completely self-contained portable plant.

• 62”x24’ vibrating grizzly feeder offers up to 30% more capacity.

• Field-proven eccentric drive mechanism. Open flow-through tube

arrangement for continual lubrication of vibrator assembly.

• Two 5’ step deck grizzlies with adjustable bars.

• End discharge for oversize product over 12”.

• Side discharge chute at second step of feeder.

• Replaceable abrasion resistant liners.

• 36” cross conveyor for fines.

• Variable speed AC inverter electric drive. Cummins 113kW

generator set allows you to run additional off-plant conveyor.

• 2 axle, revolutionary box beam chassis design for easy access to chutes.

• Fifth wheel chassis hitch.

LIPPMANN-Milwaukee Heavy-Duty Horizontal Vibrating Grizzly Feeder, 62" Wide and 24' long, with the following specifications:

• 1 1/4" thick steel feeder pan, 14' feet long, with 1/2" thick AR steel liners on pan and 3/8" thick AR liners on side plates of feeder.

• (2) 5’ long step deck grizzly section with adjustable bars and 2-1/2" to 4-1/2" nominal openings. The second section will have grizzly bars with nominal openings 5”-7” on discharge end.

• Vibrating mechanism is a model LLH-26 with two full-length, self-counterweighted  solid steel shafts

• Helical gears

• Four (4) 130 mm spherical roller bearings

• Oil splash lubrication system.

• Mechanism is enclosed in a dust proof housing.

• Sheaves, belts, and pivoted motor base are included in base price of feeder.

• Feeder includes a 60hp, NEMA C High-Torque 1800 rpm TEFC electric motor.

• 42” x 12’ (approx.) under grizzly discharge conveyor with 3 ply belting and 5” CEMA C idlers.  (this conveyor only runs under the first grizzly section)

• Includes a 7.5 hp 1800 rpm TEFC electric motor.

Side discharge chute off the second grizzly section.  (½” Hardox)

Front discharge chute for all over sized material. Mild Steel-plug liners.

(½” Hardox)

3/4” Hardox  Feeder Hopper

The steel truck frame with king-pin (without front dolly) includes

• Triple rear axles with twelve (12) hub piloted wheels.

• 11:00 x 22.5 radial tubeless tires, and air brakes.

• Also includes all necessary chutes and supports, support legs, guards for v-belt drives, tail lights, reflectors, directional signals, and mud flaps.

OPTIONS

A. Hydraulic leveling jacks, four (4) 35,000 lb., 24” stroke with a 8 hp gas power unit.

B.  NEMA 12 Motor Control Center with dust-tight enclosure and full voltage magnetic starters for 60 hp (feeder), 7.5 hp (side conveyor) motors with fuse protection.

• Start/stop push buttons and wiring from the control center to the electric motors (30/60/460 volts).

• 2 Extra starters.

C.  One (1) 60 hp, Altivar (Square D) AC electric variable speed drive and controls.

• AC variable speed drive controller

• Remote control station with 50' pendant cable, and motor circuit breaker.

• Please note that this drive option includes an electric motor as noted in Option B. above.

D.  Cummins Diesel Power Unit-113 KW@60 Hz, 125 DSGAB, 277/480 Volt
