All Products: Lippmann: Crushers: Lippmann Jaw Crushers

COREX CRUSHERS: 30% less diesel + Production 500-1000 tph (click here)

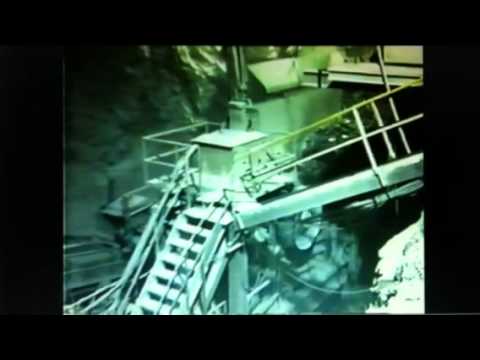

See video

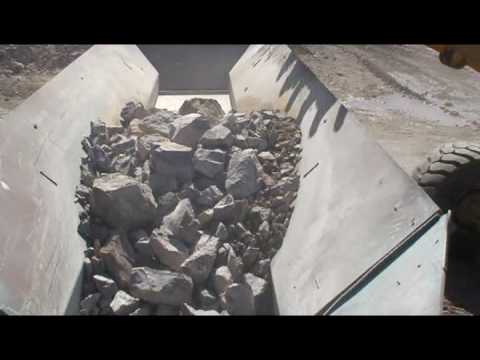

See video
Basic Information
Machine NameLippmann Jaw Crushers
Machine ID710
Model NumberLippmann Jaw Crusher
Hours0
Asking PriceName Your Price!
Machine Information
ManufacturerLippmann
CategoryCrushers
Overall ConditionNew
Year2013
Engine and Components
Engine Burns Oil
Engine Oil Leaks
Conveyor Belts Condition
Engine Parts Condition
Engine Condition
Drivetrain and Mechanical
Rollers
Tracks
Tracks Condition
Wheels
Wheels Condition
Hydraulics
Pumps and Motor Leaks
Hose Leaks
Hydraulic System Condition
Body
Physical Damage
Paint Condition
Overall Appearance

Additional Information

LIPPMANN Track Jaw Crusher

Lippmann Jaw Crushers are ideal for stationary, skid-mounted, or portable and mobile primary crushing applications.  Compare the increased production, reliability, reduced operating
costs and flexibility of a Lippmann Jaw. Its large feed opening, and force-feeding
action from the inward and downward eccentric movement of the swing jaw,
means increased capacity. Longer, curved jaw dies, a non-choking
crushing action design, and a larger eccentric throw result in a
reduction in nip angle, a more positive bite, and greater ratio
of reduction.  A Lippmann Jaw can have a smaller
discharge setting, allowing for a higher degree
of flexibility with related equipment.

Reliability is the hallmark of a Lippmann Jaw, featuring rugged ribbed frame construction, a one piece cast pitman, heavy duty rock ribs that protect the pitman, a huge oversized heat-treated shaft
forged of special alloy, and extra large, premium quality tapered roller bearings that
absorb and withstand radial and thrust shock loads.  Finite element analysis
techniques assure sound design and maximum strength at all stress
points for trouble-free crusher operation.  The Lippmann jaw is
quality engineered for simplicity, easy access, low
maintenance and includes reversible jaw dies
for increased wear.  An optional lube
system is also available.

Lippmann Large Model Heavy-Duty Jaw Crushers
When you need a truly massive jaw, Lippmann's range of large model jaws includes a 5062, 4248, 3650 and 3048 to suit your particular heavy-duty, high volume crushing application.  These
jaws offer maximum capacity, and are heavier, stronger, and more reliable than
competitive jaws. Hydraulics save countless hours. Tension rod air springs
maintain pre-set loading regardless of setting, so you can adjust under
load.  Wedge effect holds toggle bearing in on pitman and block for
easy bolt-in removal and replacement.
....
Lippmann Portable Jaw Plants
Aggregate & Mining Applications
Lippmann engineers superior, portable primary jaw crushing plants, quality designed for
compact roadability, easy transportability, and minimum set-up and tear-down time.
Leading aggregate producers and underground mining operations count on
Lippmann high capacity portable jaw plants day in day out to drastically
reduce material preparation costs, achieve maximum productivity
and operating economy for each application.
....
Recycling Applications
Lippmann custom engineers recycle jaw plants designed to process reinforced concrete and
asphalt to produce clean, saleable products or reduce landfill costs. Recycle plants are
mounted on heavy-duty chassis which incorporate robust feeding, crushing,
screening and conveying equipment with magnetic separators,
reinforced belting and other features to suit your specific
requirements.
OTHER GREAT LIPPMANN PRODUCTS....
Lippmann Rip-Rap Plants
The Lippmann Portable Rip-Rap Plant is a completely self-contained, high production screening
and scalping unit which offers a full 62” wide by 24’ long vibrating grizzly feeder.  While some
other rip-rap plants are too narrow to stratify material in order to screen it efficiently and
operate at maximum capacity, Lippmann’s larger screening area offers up to 30%
more capacity and prevents rock from stacking up. Smaller rock separates
easily, so your plant can run at higher speeds to optimally produce the
4”-12” rip-rap you need.  Besides delivering increased efficiency
and capacity, the Lippmann Portable Rip-Rap Plant offers a
superior, unique box beam construction. This allows your
front-end loaders easier access to chutes, at better
angles, with substantially increased clearance
space over conventional chassis designs.
....
62"x24' Portable Rip-Rap Plant
Completely self-contained portable plant.
62”x24’ vibrating grizzly feeder offers up to 30% more capacity.
Field-proven eccentric drive mechanism. Open flow-through tube
arrangement for continual lubrication of vibrator assembly.
Two 5’ step deck grizzlies with adjustable bars.
End discharge for oversize product over 12”.
Side discharge chute at second step of feeder.
Replaceable abrasion resistant liners.
36” cross conveyor for fines.
Variable speed AC inverter electric drive. Cummins 113kW
generator set allows you to run additional off-plant conveyor.
2 axle, revolutionary box beam chassis design for easy access to chutes.
Fifth wheel chassis hitch.
Lippmann Portable Roll Plants
In addition to Lippmann's two-stage jaw/impactor crushing plants, Lippmann offers a two unit combination jaw or cone and roll crushing system. The DUO-KING is a high capacity
secondary and tertiary crushing and screening plant which incorporates a
Lippmann Roll Crusher, where the unique flow of material allows for high
production in a variety of applications. The DUO-KING offers a huge
screening area with up to 350 sq. ft. Simplified design makes both
crushers and screens readily accessible for servicing and/or
adjustment. Screening medium is easily changed.  The
jaw crusher or cone crusher and roll crusher are
powered by separate power units or electric
motors. Power can be selected to match
the individual crusher power requirements for optimum capacity and efficiency with diesel or electric drives.
Twin, individually reversible reject conveyors allow the flexibility to reject
fines to the rear of the plant, or blend them into the finished product.
Truly portable, the two unit DUO-KING does not require
disassembly to meet most weight and
height restrictions.
....
Lippmann Vibrating Feeders & Screens
Lippmann heavy-duty vibrating feeders meter material to the crusher and scalp out fines
while delivering optimum performance. They feature rugged construction for proven,
dependable, continuous operation, employing an extra heavy feeder pan and
cross members which guard against failure due to severe impacts.
Replaceable Hardox 400 steel liners on pan and side plates
provide optimum wear resistance.
Low profile side plates make Lippmann vibrating feeders ideal for portable plants.
Heavy-duty replaceable grizzly bars are available in fabricated or cast steel,
fixed or adjustable, straight deck or step deck.  A heavy-duty, field-proven
eccentric drive mechanism provides straight line motion, which
straightens out slabby material so the long dimension is
fed in-line with the grizzly feeder. Open, flow-through
tube arrangement permits oil to constantly
circulate through the entire vibrator
assembly to help dissipate heat.
Electrical, mechanical or hydraulic variable speed drives are available.
....
Lippmann two or three-stage plant systems
Whether you require two or three-stage plants, Lippmann engineers can provide the optimum plant design to achieve maximum production and efficiency for your operation.  For superior in-pit
crushing and screening installations, Lippmann delivers high capacity two-stage
jaw / impactor crushing systems that deliver maximum productivity and
produce high quality cubical aggregates. No one provides more
value, reliability and reduced operating costs for your material
processing needs.
For complete crushing and screening solutions designed to handle reinforced concrete and asphalt to produce clean, saleable materials, count on Lippmann as your single source supplier for the equipment, applications expertise and product support you need for demanding recycle
crushing applications.
