All Products: Finlay: Screens: Finlay 694 Supertrak Triple Deck Screen

COREX CRUSHERS: 30% less diesel + Production 500-1000 tph (click here)

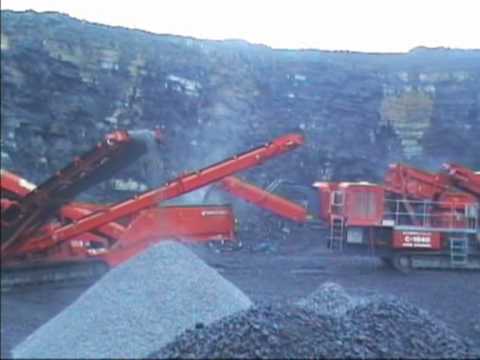

See video
Basic Information
Machine NameFinlay 694 Supertrak Triple Deck Screen
Machine ID831
Model Number694 TRIPLE DECK
Hours1000
Asking Price198000
Machine Information
ManufacturerFinlay
CategoryScreens
Overall ConditionVery Good
Year2007
Engine and Components
Engine Burns OilNo
Engine Oil LeaksNo
Conveyor Belts ConditionGood
Engine Parts ConditionGood
Engine ConditionExcellent
Drivetrain and Mechanical
RollersGood
TracksYes
Tracks ConditionExcellent
WheelsNo
Wheels ConditionNot Applicable
Hydraulics
Pumps and Motor LeaksNo
Hose LeaksNo
Hydraulic System ConditionGood
Body
Physical DamageNo
Paint ConditionGood
Overall AppearanceGood

Additional Information



The high performance 694 Supertrak is a triple deck screen with four product conveyors. The 694 Supertrak is viewed as a major benefit for contract crushing operators in sizing and scalping crushed aggregate, sand and gravel, coal, as well as demolition material. Designed for maximum productivity, the 694 Supertrak incorporates a large feed hopper, a large screen box and extended conveyors that offer large stockpiling capabilities.

more info about 694 enquire here



screen:

triple deck screen box

screen size:

top deck: 6100mm x 1520mm (20' x 5'); middle deck: 4880mm x 1520mm (16' x 5'); bottom deck 4880mm x 1520mm (16' x 5')

engine size:

Deutz 75kW

hopper capacity:

8m3

machine weight:

34 000kg

The oversize plus product can be fed into a secondary crusher before re-screening, or a fourth product can be stockpiled, which often eliminates the need for an additional screen. The 694 Supertrak has a high throughput capacity of between 250tph to 320tph while maintaining low operating costs. This screening unit offers numerous additional options including a hopper by-pass feed chute, a single or double deck heavy-duty, longer conveyor, handy dust covers on the conveyors, as well as a hydraulic tensioning of screenbox middle and bottom decks.

Specifications:

Remote tipping or vibrating grizzly feed hopper

3-deck, 3-bearing reversible screenbox utilizing mesh, RapidScreen or piano wire

Variable speed inclined belt feeder

Diesel-powered 75kW water-cooled power unit

4 hydraulically folding stockpiling conveyors

Remote control twin track undercarriage
