All Products: Extec: Crushers: EXTEC C12 TRACKED JAW CRUSHER 1200 x 750

We CRUSH the Competition

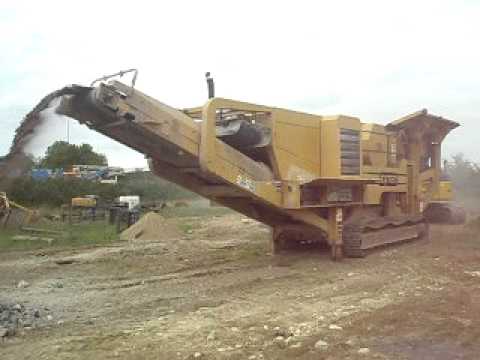

See video
Basic Information
Machine NameEXTEC C12 TRACKED JAW CRUSHER 1200 x 750
Machine ID899
Model NumberC12
Hours5600
Asking PriceName Your Price!
Machine Information
ManufacturerExtec
CategoryCrushers
Overall ConditionVery Good
Year2004
Engine and Components
Engine Burns OilNo
Engine Oil LeaksNo
Conveyor Belts ConditionGood
Engine Parts ConditionGood
Engine ConditionGood
Drivetrain and Mechanical
RollersGood
TracksYes
Tracks ConditionGood
WheelsNo
Wheels ConditionNot Applicable
Hydraulics
Pumps and Motor LeaksNo
Hose LeaksNo
Hydraulic System ConditionGood
Body
Physical DamageNo
Paint ConditionGood
Overall AppearanceGood

Additional Information

The Extec C12 has a Vibratory feeder with automatic control to regulate the feed into the crusher; a hydraulic adjustment system to regulate the product size to be crushed: reverse crushing action to assist in clearing blockages; and a high crushing speed.



Additional features include:



Extended tail conveyor as standard for even greater stockpiling capacity.

Diesel hydraulic power via Caterpillar C-9 Industrial engine – 261 kW / 350 hp which provides hydraulic transmission without clutches.

Large vibrating feeder with grizzly and discharge conveyor for fines. Hydraulic system automatically coordinates the flow of material from the vibrating feeder to the jaw.

Hydraulic adjustment system to regulate the product size to be crushed.

Uniquely small closed size setting.

Operation of jaw can be instantly reversed to clear any blockage.

Unique fast track system ensures the clear flow of reinforcing bar when concrete is crushed.

Large gap between discharge point of crusher and discharge conveyor eliminates blockages and facilitates cleaning.

Complete machine raises on its hydraulic legs to facilitate cleaning, servicing of tracks and to provide a stable base.

Machine is self propelled by remote control or umbilical control hand set.

Intelligent electronics.

Bearing condition monitoring system.

Vogel automated jaw grease system.



Applications include:



Rock crushing in quarries or construction sites.

Concrete crushing in recycling yards or demolition sites.

Asphalt crushing.


Click to contact sales
